For shops where the XPR300 is more power than the work requires, the XPR170 delivers the same X-Definition® cut quality platform at a specification matched to the application.
Plazmax integrates the XPR170 as a power source option on both the CutAce and CutPro CNC plasma cutting systems. All Plazmax machines with the XPR170 are configured with the VWI (Vented Water Injection) console as standard.

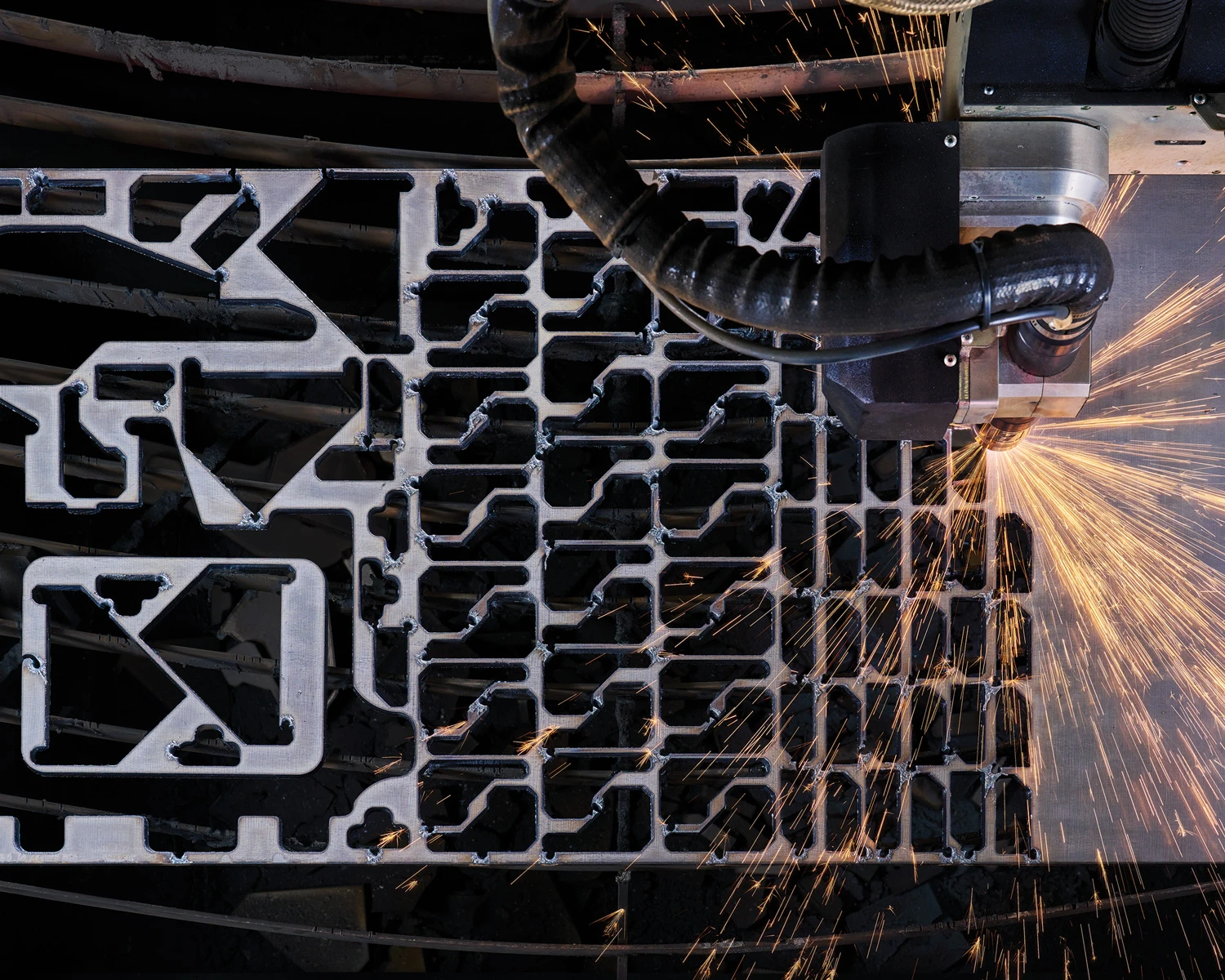

Pierce capacity determines whether your machine can initiate a cut mid-plate without edge starting - critical for nest cutting and processing full sheets. Cut capacity (severance) is the maximum thickness the system can cut through regardless of where the cut starts. For operations processing plate continuously from a nest, pierce capacity is the number that governs your process. For project-based or one-off fabrication where edge starting is acceptable, severance gives a better picture of the system's upper limit.
| Thickness (mm) | 6 | 10 | 12 | 15 | 20 | 25 | 32 | 40 |
|---|---|---|---|---|---|---|---|---|
| Cut speed (mm/min) | 5,080 | 3,461 | 3,061 | 2,277 | 1,575 | 1,175 | 752 | 462 |
| Thickness (mm) | 10 | 12 | 15 | 20 |
|---|---|---|---|---|
| Cut speed (mm/min) | 1,975 | 1,735 | 1,375 | 978 |
| Thickness (mm) | 10 | 12 | 15 | 20 | 25 |
|---|---|---|---|---|---|
| Cut speed (mm/min) | 1,994 | 1,834 | 1,502 | 978 | 778 |

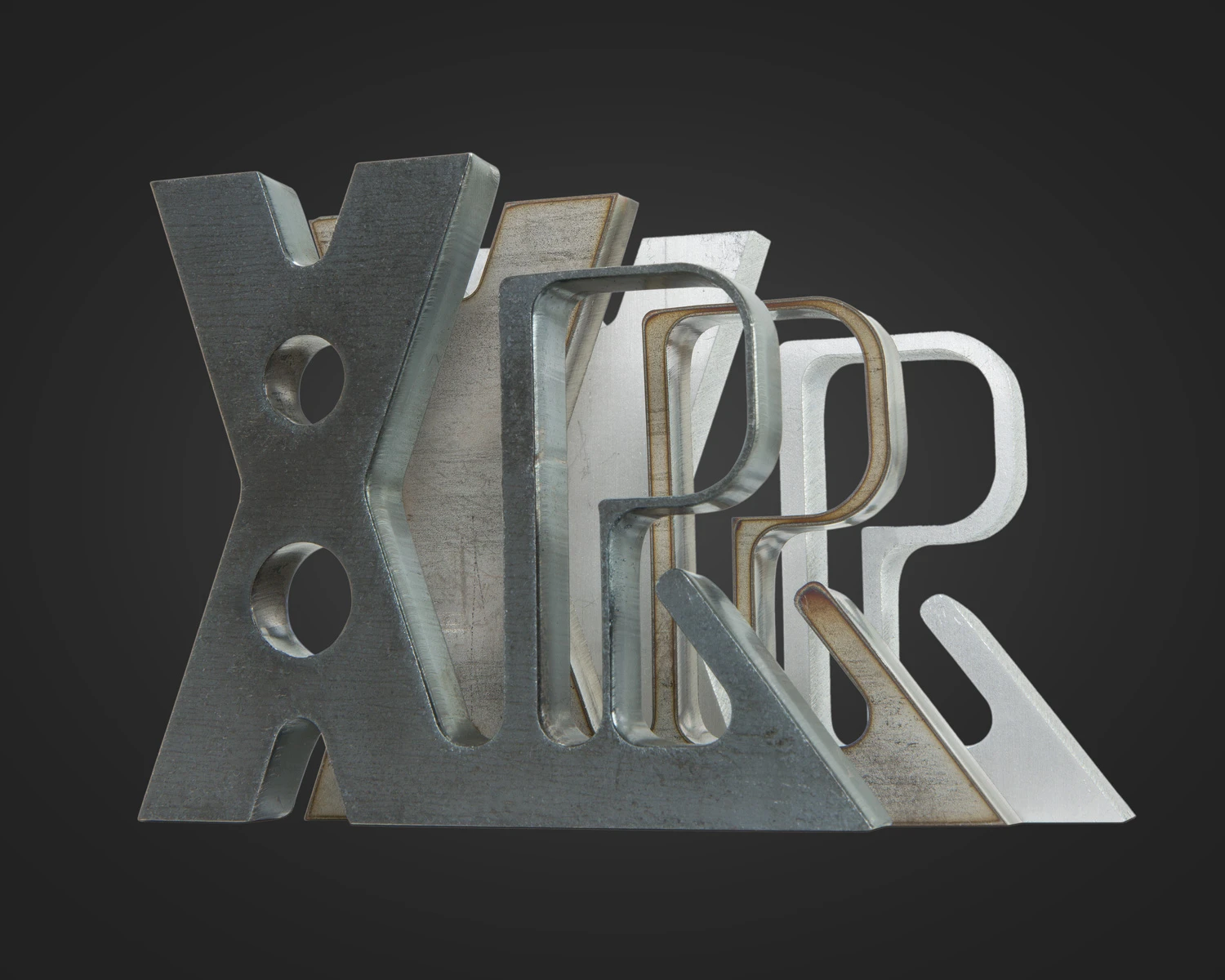

The XPR170 runs the same X-Definition® process as the XPR300 and XPR460 - tighter arc constriction, improved arc stability, and finer edge quality than previous-generation HyDefinition® systems. On mild steel in the 6-25mm range, the XPR170 delivers ISO 9013 Class 1 and 2 tolerances when paired with a precision CNC machine. On stainless steel, the VWI console's water injection shielding reduces the heat-affected zone and improves edge colour. For general fabrication shops that don't regularly process plate above 30-35mm, the XPR170 delivers the full X-Definition® quality advantage without over-specifying the power source
The XPR170 includes Hypertherm's Arc Response Technology®, which continuously monitors the cutting process and automatically intervenes to protect the torch and consumables. Ramp-down error protection applies a controlled stop when the arc is over-stretched, preventing electrode blowouts. Automatic torch protection shuts down before catastrophic torch failure when the electrode approaches end-of-life. Both functions extend consumable life and reduce unplanned downtime - particularly important for smaller operations without a dedicated maintenance resource on site.

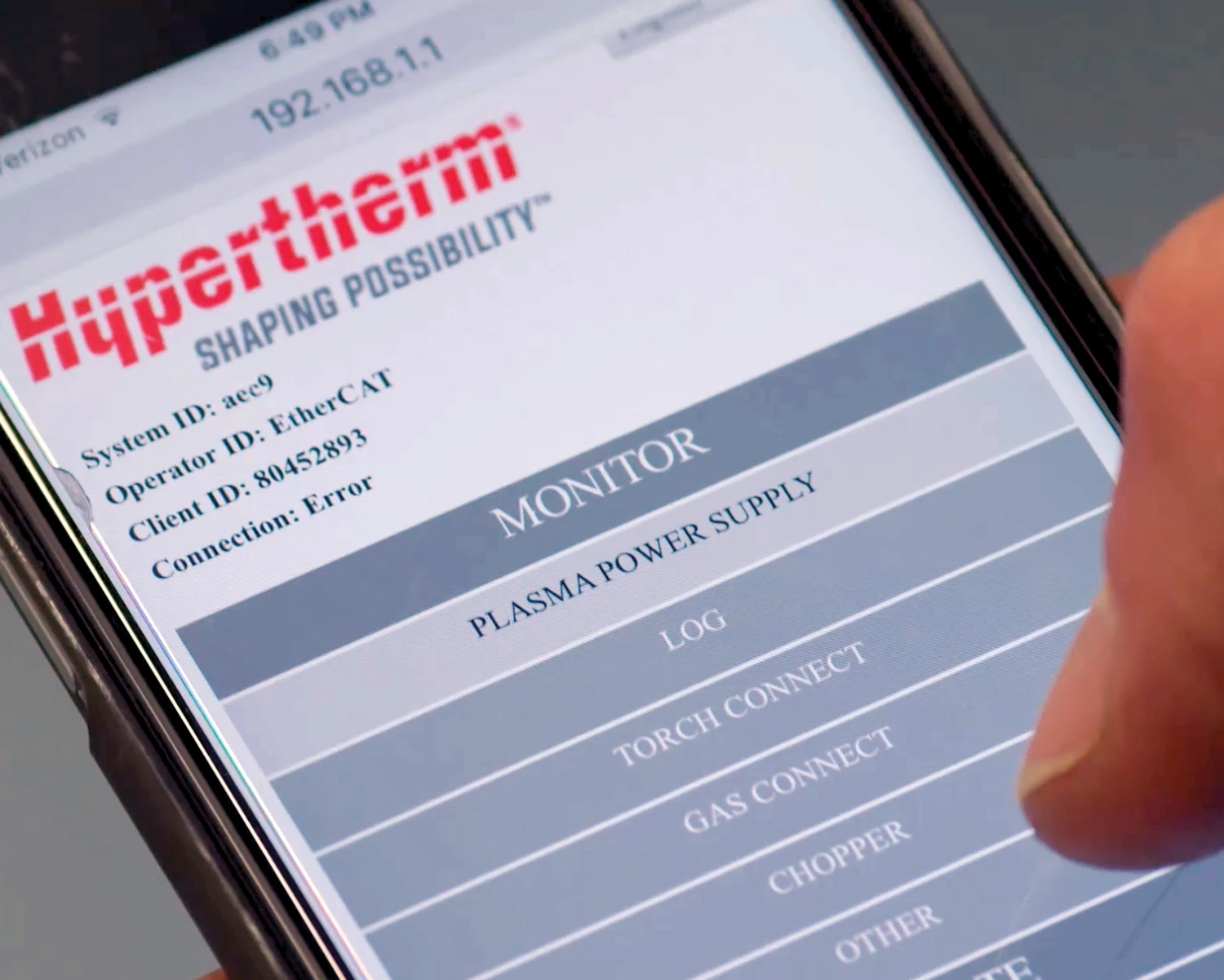

The XPR170 includes built-in Wi-Fi and connectivity for remote system monitoring via a web interface. Diagnostic data is accessible without a technician on site, and the system provides specific troubleshooting codes to simplify maintenance and service prompts.

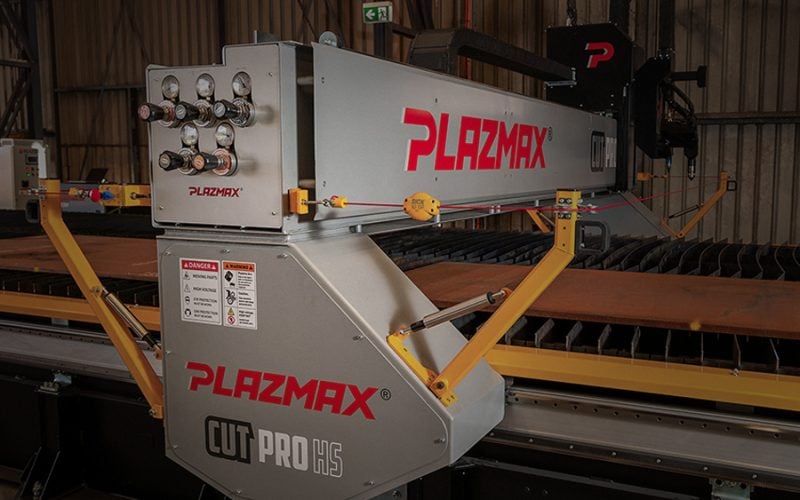

The XPR170 is available as a power source option on both the Plazmax CutAce and Plazmax CutPro. All Plazmax machines are delivered with turnkey installation, operator training, and full NZ-based technical support. As the manufacturer, we commission the XPR170 integration and can support both the machine and the power source from a single point of contact in New Zealand.
As an authorised Hypertherm OEM Channel Partner, Plazmax supplies genuine XPR170 consumables and replacement parts. Consumables are process-specific, the correct combination of electrode, nozzle, shield, and retaining cap depends on the material and amperage being run. See our Consumables & Parts section or contact us for XPR170-specific consumable advice.
Mild Steel
Stainless Steel
Aluminium
